Visual DAQ DaqPlaner - Planar Data Analysis

Web Server

Screens ›› Data Acquisition (DAQ) ›› DAQ Settings ››

____________Click here to go to Help Contents____________

Parent

Previous

Next

Provides chart and data readings through the browser or Internet protocols.
The machine have to be accessible in the network or Internet (having a public IP assigned to it).

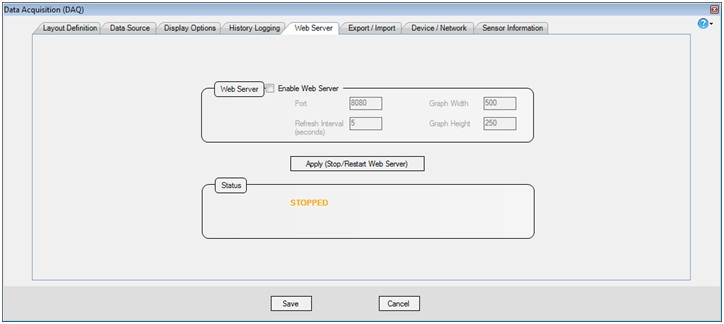

(Figure 1 : DAQ Web Server)

Field	Description
Enable Web Server	Enable/Disable listening for web requests and serving web content.
Port	Port number to listen for HTTP requests.
Refresh Interval	Auto-refresh interval for the web pages, to automatically refresh data and charts.
Graph Width, Graph Height	Dimensions of gradient charts when rendered in the web browser.
Apply	Start/Stop/Restart web server according to whether web server is enabled or not. and according to whether web server is started or not.

(Table 1 : Fields Description)
